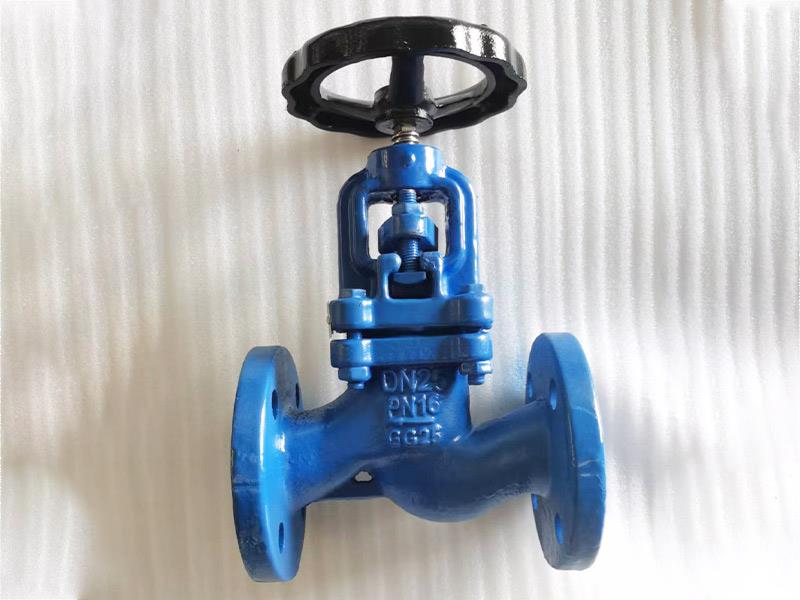

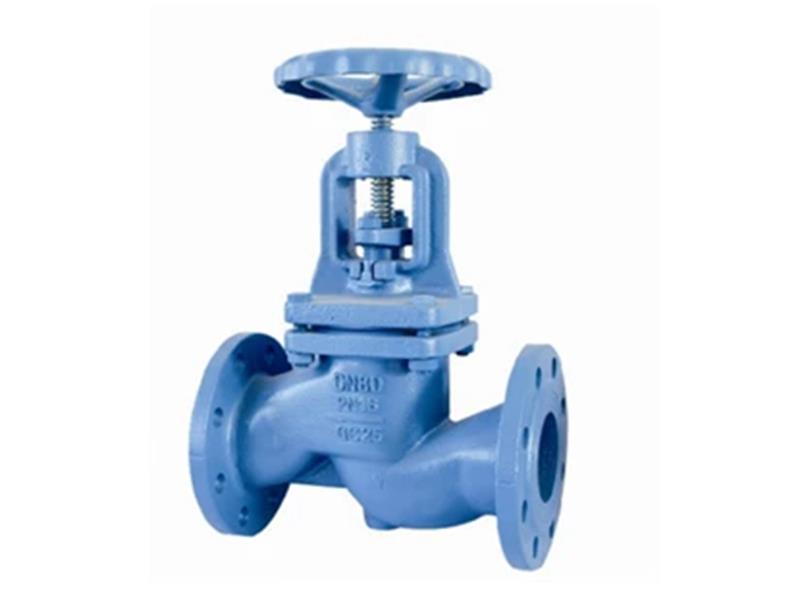

Cast iron Globe valve

Size: DN15~300
Pressure Rating: PN6~PN40
Design standard:EN 13789
Face To Face Dimension: BS EN 558-1,DIN3202
Connecting Dimensions: EN 1092-2
End Connection: RF
Body Materials: Cast iron ,Ductile iron.
Operated Way: Hand wheel , Bevel Gear, Pneumatic, Electric,etc

Cast iron globe valve is mainly suitable for pipeline or other equipment on the medium open and close function, widely used in construction, power, gas, drainage and other industries.

Design Feature:

-Bolt bonnet bonnet design.

-Plug disc

-Stem is one-piece wrought material.

-Outside Screw and Yoke.

-Rising stem

-Optional Impact hand wheel
