PRODUCTS

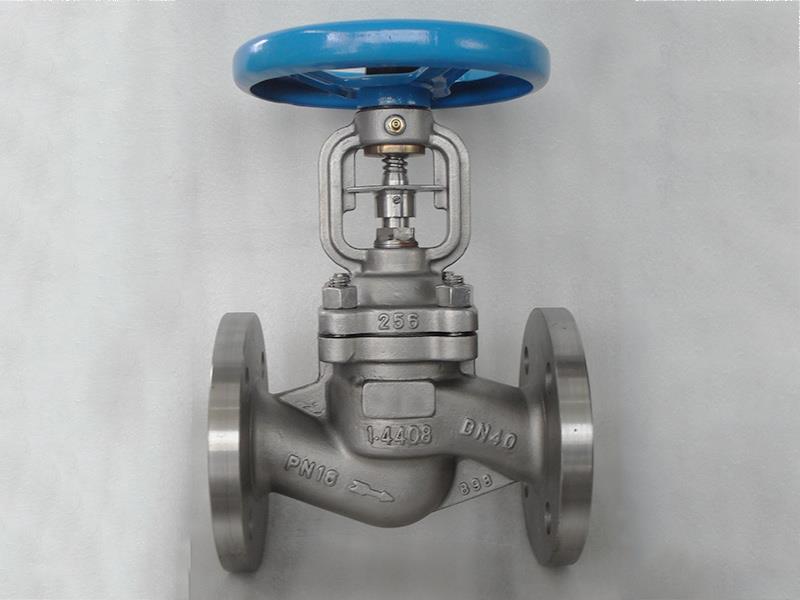

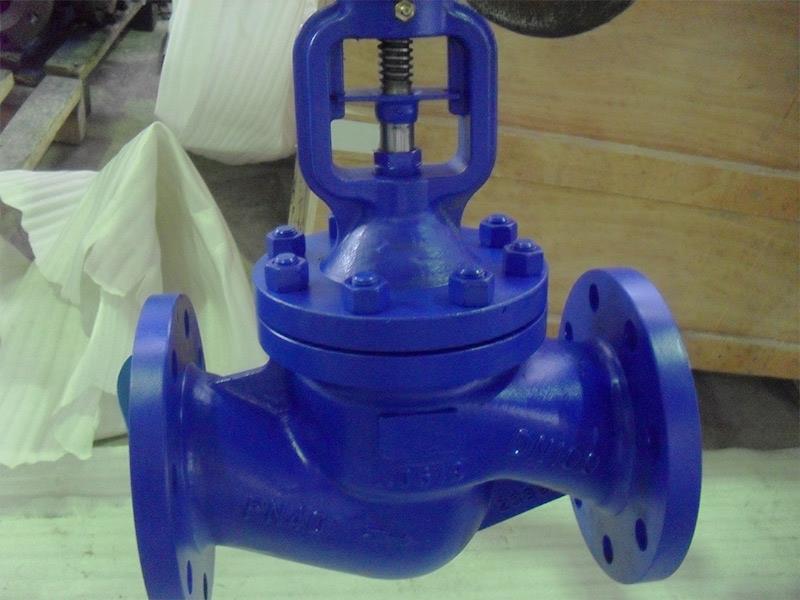

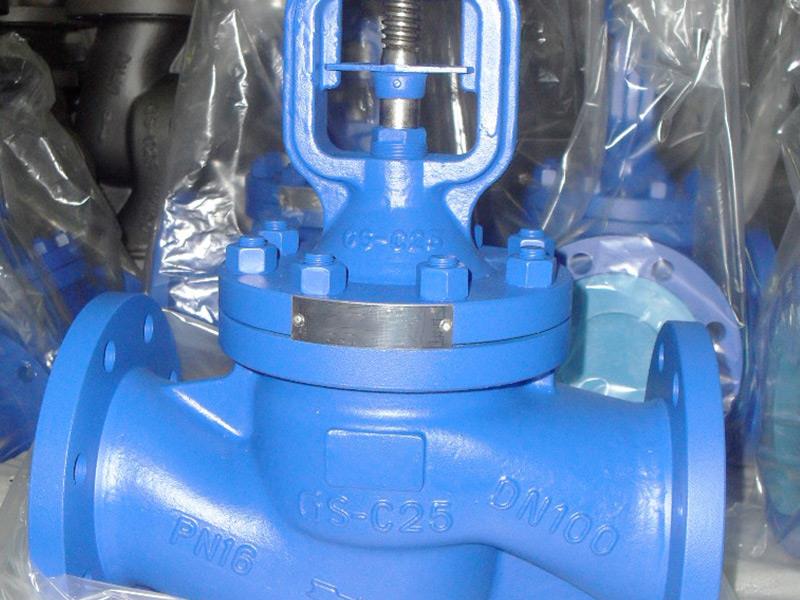

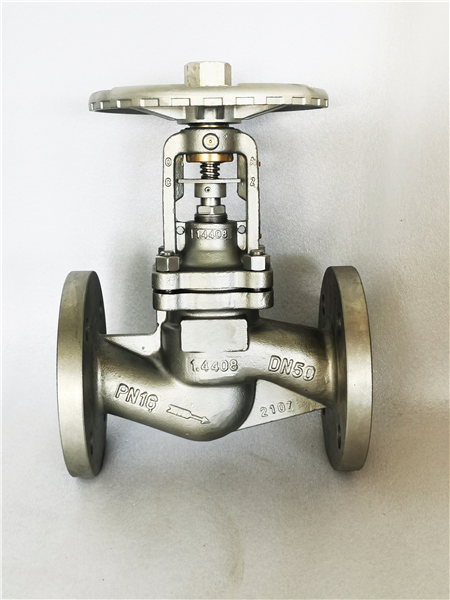

Bellow Seal Globe Valve

-Size: NPS 2"~24", DN50~600
-Pressure Rating: Class 150-600 LB, PN16~PN100
-Design standard:API 600 ,ASME B16.34,DIN3356.
-Face To Face Dimension: ASME B16.10, BS EN 558-1,DIN3202
-Connecting Dimensions: ASME B16.5, ASME B16.47,ASME B 16.25, EN 1092-1, EN 12627
-End Connection: RF,RTJ, BW.
-Body Materials: Carbon steel, Stainless Steel, Alloy Steel. Duplex Stainless Steel.
-Operated Way: Hand wheel , Bevel Gear, Pneumatic, Electric,etc

Bellow Seal Globe valves have been solving fluid control problems in Steam, Boiling and other general industrial applications for over 30 years. Bellows seal globe valves reduce fugitive emissions of toxic, lethal, or regulated fluids/gases, minimize maintenance, reduce life cycle costs, and optimize productivity in process plants. This includes steam, cryogenic, and vacuum systems.  Bellow Seal Globe Valves are Applicable for the Cutting and Connection of Pipelines Medium That are Used in Various Industries Such as Petroleum, Chemical, Pharmacy, Chemical Fertilizer and Electric Power Plants etc

Design Feature:

-Bolt bonnet bonnet design.

-Optional parabolic disc or plug disc

-Bellow sealed design.

-Stem is one-piece wrought material.

-Outside Screw and Yoke.

-Rising stem

-Optional by-pass design

-Optional Impact hand wheel

If you have any enquiry about quotation or cooperation,please feel free to email us at or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
