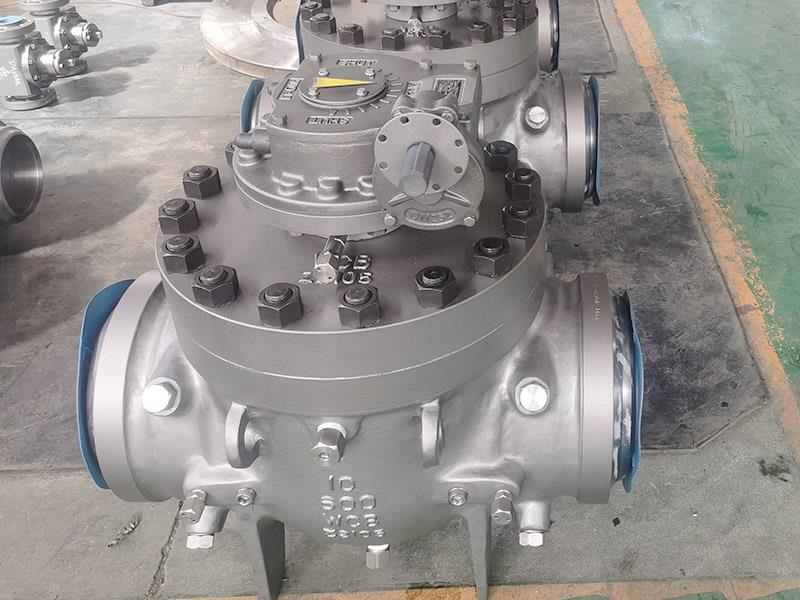

Top entry ball valve is only with single integral Body and has the same features as side entry ball valve , such as Emergency Sealant Injection, Low Emission Packing, Fire Safe, Anti-Static and Anti-Blowout Stem,The characteristic of the top entry ball valve is that the ball is fixed at the top of the valve body, and it is controlled to open and close by the valve stem. This design enables the ball valve to perform excellently under conditions of high pressure, high temperature, and high flow. Top entry ball valves are widely used in industries such as chemical, petroleum, natural gas, and pharmaceuticals, particularly suitable for pipeline systems that require frequent switching.
Design Feature:
- One-piece flange top-entry trunnion design
- Double block and bleed
- One-piece ball and stem assures precise positioning
- Anti blowout one-piece ball/stem design
- O-rings plus fire-safe packing prevents leakage
- Corrosion resistant low friction bearings
- Wave springs provide upstream and downstream sealing
- Stainless Steel Sealant injection fittings for emergency stem of seat sealing
-inline repairable due to reasonable seat retainer design
-Minimized torque required to open and close valve
-Anti-static grounding between ball, stem and body
-Integral top works direct mounting pad
