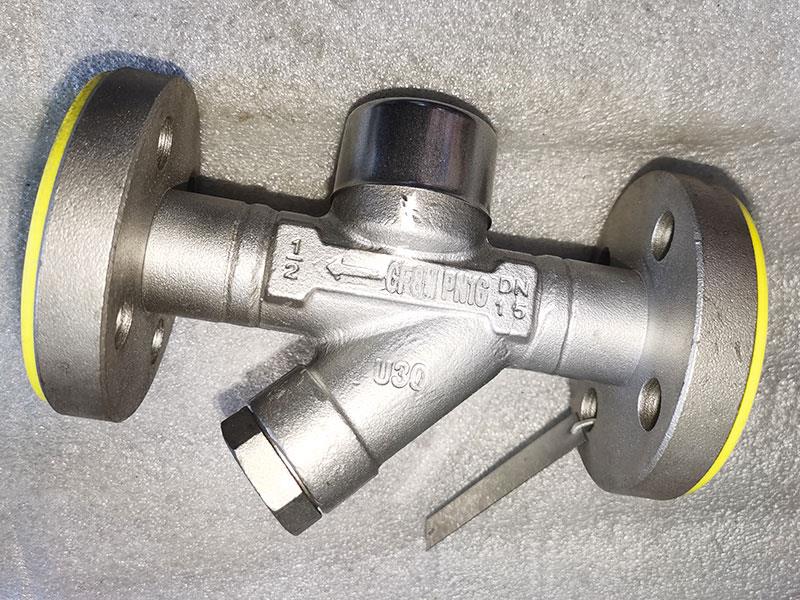

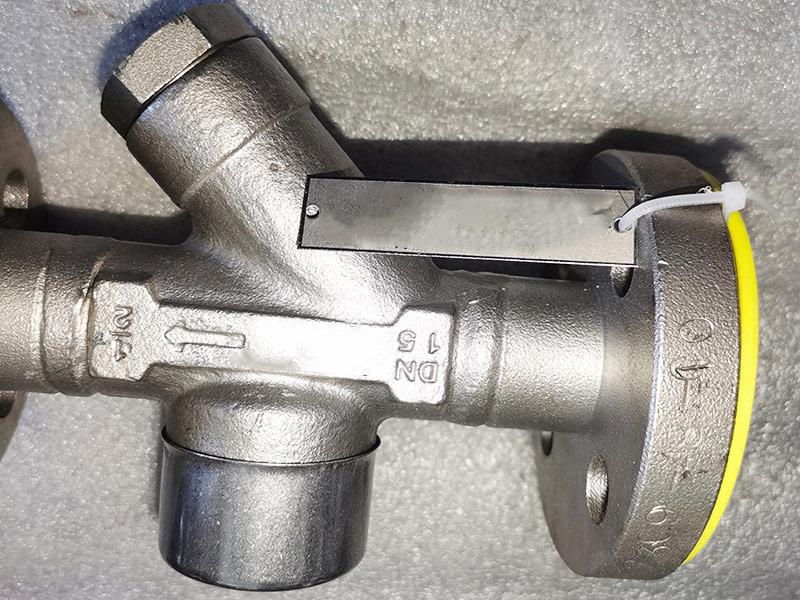

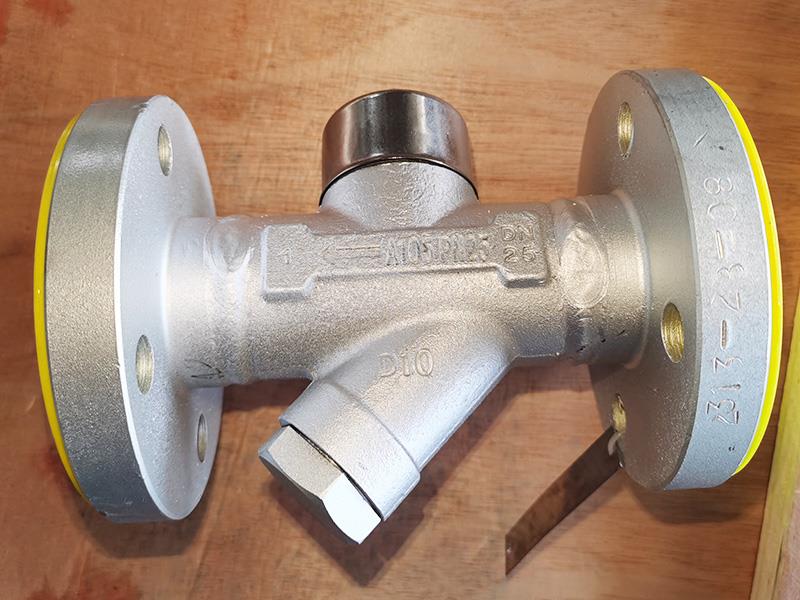

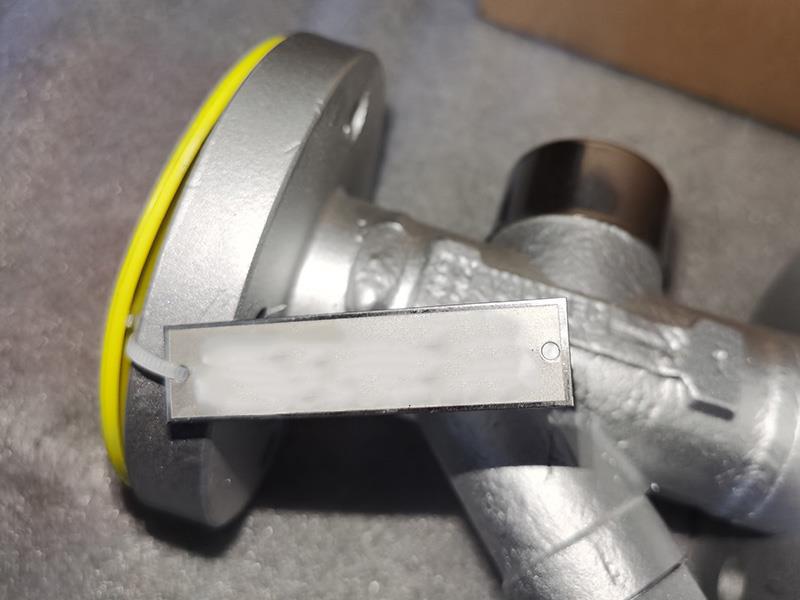

Thermodynamic steam trap is made up of one moving part. This part is a disc made of stainless steel and it serves as a valve. This steam trap operates by use of flash steam dynamic effect. Thermodynamic steam trap is simple in design and is well suited for serving medium and high-pressure applications. This steam trap is small, free from water hammer effects, and it can be installed in any position be it vertical or horizontal.
Designing Features:
-Positive condensate discharge with clean tight shut-off. Discharges condensate at very close to steam temperature that ensures maximum plant efficiency
-Just one moving part, a disc, ensures reliable operation and minimal maintenance without having to remove from the line
-Compact and light weight, reducing installation costs» Hardened disc and seat for long life
-One trap covers a wide range of operating pressures making selection and replacement simple
- Insulating cover for low ambient temperature or wet environments
-Thermodynamic traps can be used on high pressure and superheated steam and are not affected by water hammer or vibration.
