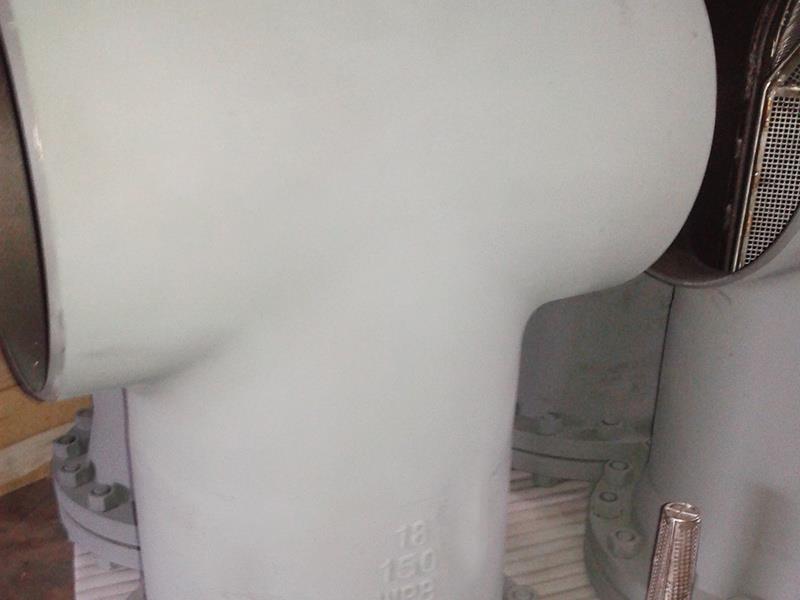

T Strainer

Size: NPS 2"-24" , DN50-600mm
Pressure: Class 150-600 LB , PN 10 ~ 100
END Connection: Flange, BW, SW, NPT
Design Standard: ASME B16.34,BS EN 12516-2
Face to Face Dimension : ASME B 16.10, Manufacturer standard
Connection Dimensions: ASME B 16.5 , ASME B 16.25 , ASME B 1.20.1 , ASME B 16.11,EN 1092-1
Body Material: Carbon steel, Stainless Steel, Alloy Steel. Duplex Stainless Steel, Special Alloy.

T-type Strainers may be mounted either in vertical or horizontal pipes, in the vertical position the discharge would flow down into the basket. In the horizontal location, the branch link is located on the side for side access or, respectively, and on the top for top access. T Strainers are restricted to course filtration due to the way the basket is placed within the T will encourage fluid to flow through the runner bar system.

Design Feature:

-Bolted Bonnet
-Welded body.

-T type

 -Drain plug

- Stainless steel filter screen.
-Flange End , BW ends

-It comes with a quick opening type covers for easy cleaning operation.

-It is provided with an easy venting port and has differential pressure taps.

-It has a straighter flow path which allows higher flow capacity.

-T type Strainer is suited for transferring fluids at a higher velocity.

-These are ideal for large pipe uses that need quick access to the strainer.

-While installed horizontally the chamber cover can be opened without draining the process fluid. Thus, it can be used in hazardous processes.
