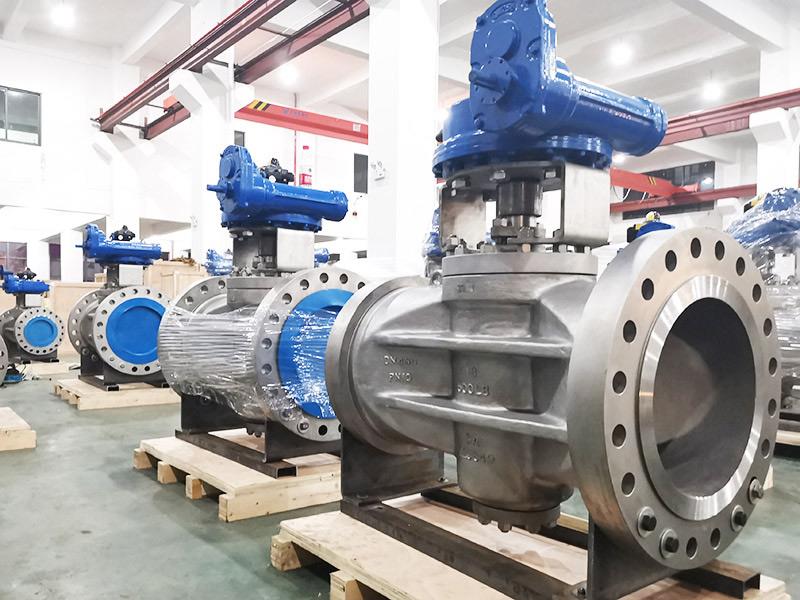

Sleeved plug valves are non-lubricated quarter-turn valves that achieve sealing through the use of a compressible sleeve as a sealing member. In many applications they operate virtually maintenance free for decades. Our company offers a wide range of plug valves to meet your needs. Sizes range from 1/2" to 24" and end connections include screwed, weld, flanged. Bi-directional flow, simple actuation, lightweight, compact design, and multiport configurations all facilitate improved system design.Sleeved Plug Valves are designed and manufactured strictly to International Standards API 599, ASME B16.34 or DIN3202, Featured with compact structure & Low emission service.
Design Feature:
-Soft sealing
-Venturi-pattern ,Round-port/full-bore, Short-pattern ,Regular-pattern
-Closing is perfect since the plug part is enclosed in a PTFE sleeve.
-It has a metal rim of 360 degrees only for protection and securing of the jacket.
-No cavity in the valve for accumulation of fluid.
-Metal rim has a self-cleaning function when the plug is turned.
