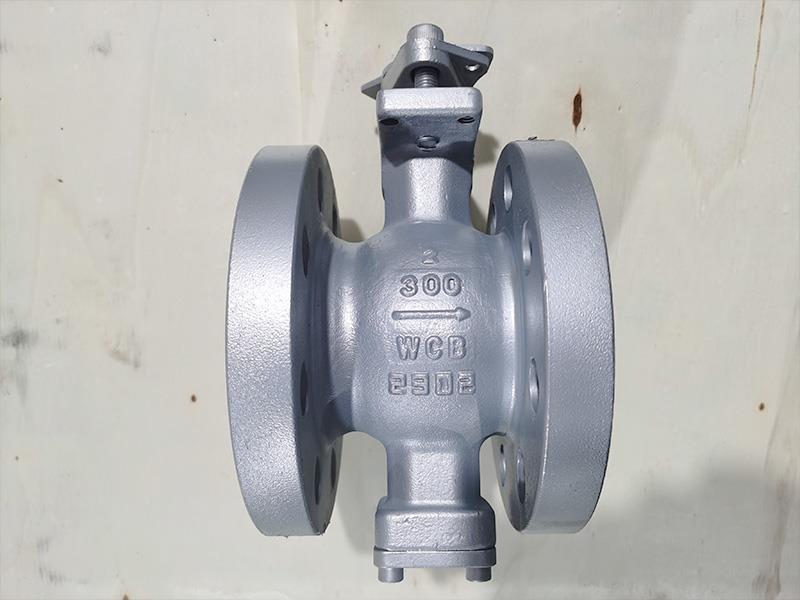

Segment Ball valve

Size: NPS 1"-12" , DN25-300
Pressure: Class 150 ,  PN 10 ~ 25
END Connection: Flange
Design Standard: API 6D , ASME B16.34,BS 5351
Face to Face Dimension : IEC/DIN534-3-2
Connection Dimensions: ASME B 16.5 , EN 1092-1
Body Material: Carbon Steel , Stainless Steel , Duplex Stainless Steel , Special Alloy
Operated Way: Lever, Worm gear-box, Pneumatic, Electric,etc

A segmented ball valve is similar to a conventional ball valve, but with a contoured V-notch segment in the ball. This control valve has good rangeability, control, and shutoff capability. The V-notch ball provides positive shearing action and produces an inherent equal percentage flow characteristic. It provides non-clogging, high capacity flow control. The V-notch ball has been specially contoured to maximize capacity and enhance seal life and shutoff integrity.

V-notch ball control valve bodies are suited to control erosive or viscous fluids, paper stock, or other slurries containing entrained solids or fibers. The paper industry, chemical plants, sewage treatment plants, the power industry, and petroleum refineries use such valve designs.

Design Feature

-V-Port Design

-One piece Body

- Metal to Metal Sealing or Soft Sealing

-Flange End

-Locking Device

-Fire Safe Design , Anti-static Device

-Anti-Blowout Stem Design

-Positive Shut-Off

-ISO 5211 Mounting Flange for Actuator
