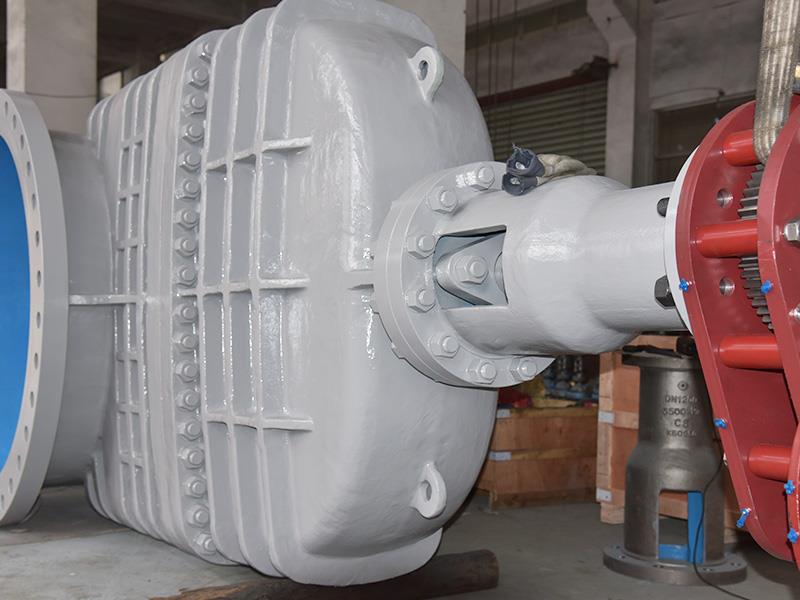

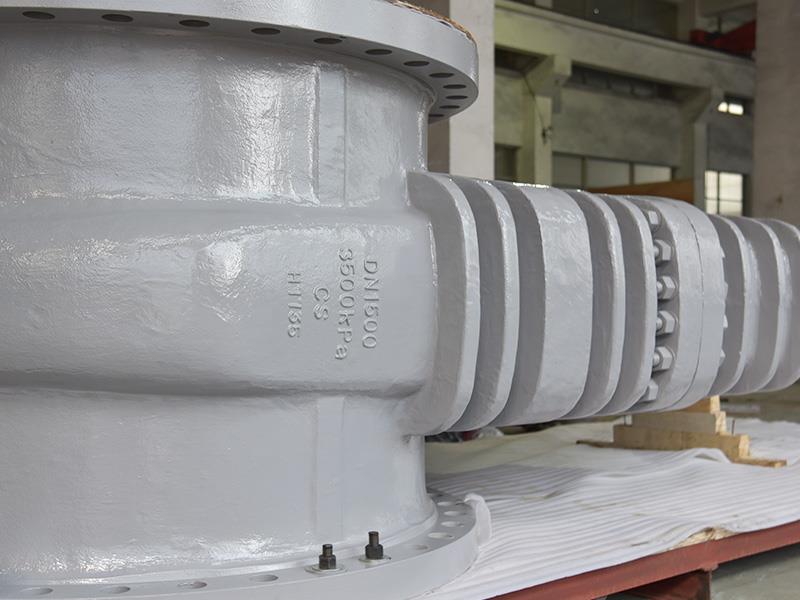

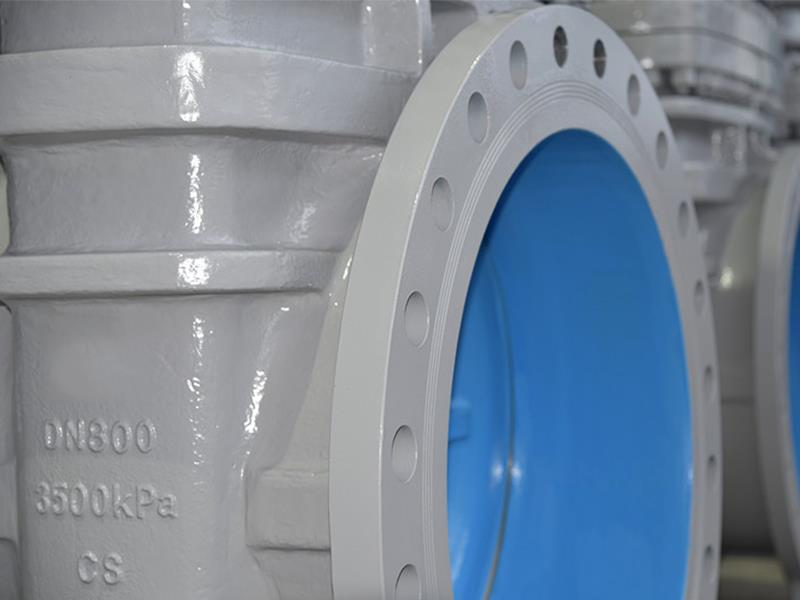

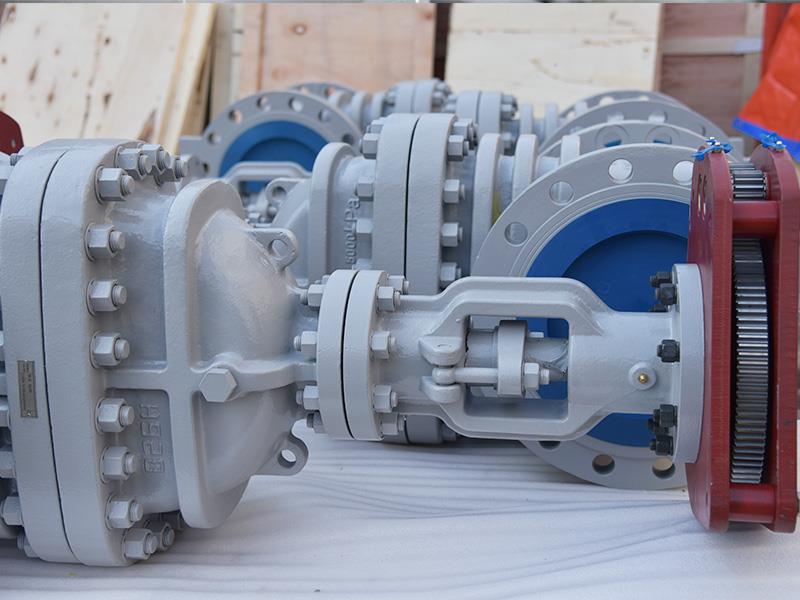

Non Rising Stem Gate Valve

Size: DN100 ~ DN1800
Pressure: CLASS150~CLASS300, PN6~PN63 , 1500kPa ~ 8500 kPa
END Connection: RF
Design & Manufacture Std.:  ASME B16.34  , API 600 ,  DIN EN 1984
Face to Face Dimension: ASME B16.10. BS BS EN 558-1 or acc. to customer's request
Connecting Dimensions.: ASME B16.5(for NPS≤24);ASME B16.47(for NPS>24); API 605, AWWA C207, DIN EN 1092-1 or acc. to customer's request
Inspection & Test: API 598, ISO 5208
Body Material: Cast iron .Ductile iron,Carbon Steel , Stainless Steel .
Operated Way: Hand wheel , spur gearbox operation with cap top ,Bevel Gear, Pneumatic, Electric,etc

This series of valves is used in pipe systems in the water treatment industry to close or open pipes to maintain the normal operation of fluids.Designed and manufactured to most updated international standards ASME B16.34, BS 5156, DIN 3352, AWWA C509 or equivalents. With standard features of Non Rising Stem, Bolted Bonnet and Stem Nut operation.

Design Feature:

- Bolt bonnet , Non-Rising stem

- Full Bore

-Available in Single hand  thread or Double hand thread

-Fully forging Stem

-With Lifting Ring and Standing Leg

-With Drain Plug

- Epoxy paint onto Outside and Inside surface , excellent performance in anti-rust

-Disc with Limit Stop Design

 -Flexible Wedge

- Optional by-pass design

-Calibrated position indicator
