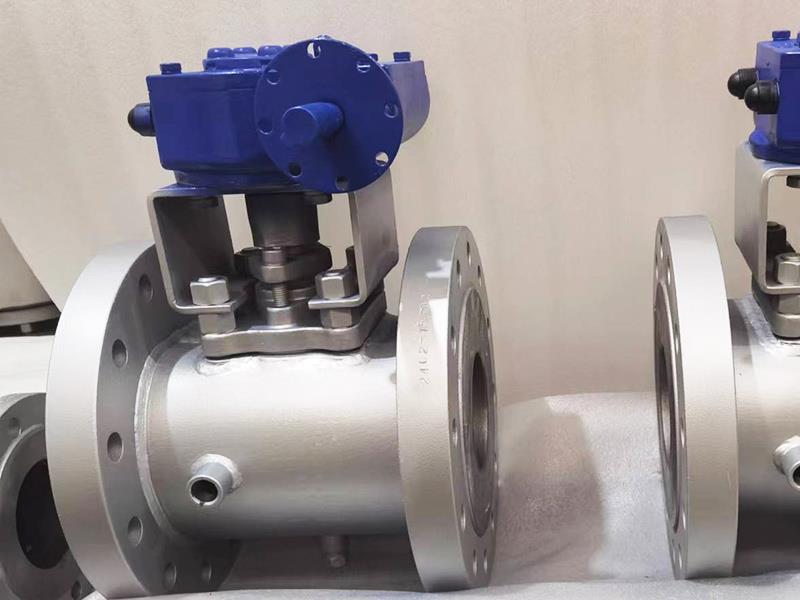

Jacketed Plug Valve

Size: NPS 1/2"~ 24" , DN15 ~ DN600
Pressure: Class 150-900 LB,  PN 10 ~ 100
END Connection: Flange, BW
Design Standard: API 6D, API 599
Face to Face Dimension : ASME B16.10
Connection Dimensions: ASME B 16.5, ASME B16.25
Body Material: Carbon Steel, Stainless Steel, Duplex Stainless Steel, Special Alloy
Operated Way: Lever, Worm gear-box, Pneumatic, Electric,etc

The jacketed plug valve has simple structure, rapid opening and closing, small flow resistance, convenient maintenance, good sealed performance. Widely used in chemical, petroleum and other industrial piping system control.

Design Feature:

-Jacketed

-Soft sealing

-Venturi-pattern ,Round-port/full-bore, Short-pattern ,Regular-pattern

-Closing is perfect since the plug part is enclosed in a PTFE sleeve.

-It has a metal rim of 360 degrees only for protection and securing of the jacket.

-No cavity in the valve for accumulation of fluid.

-Metal rim has a self-cleaning function when the plug is turned.
