PRODUCTS

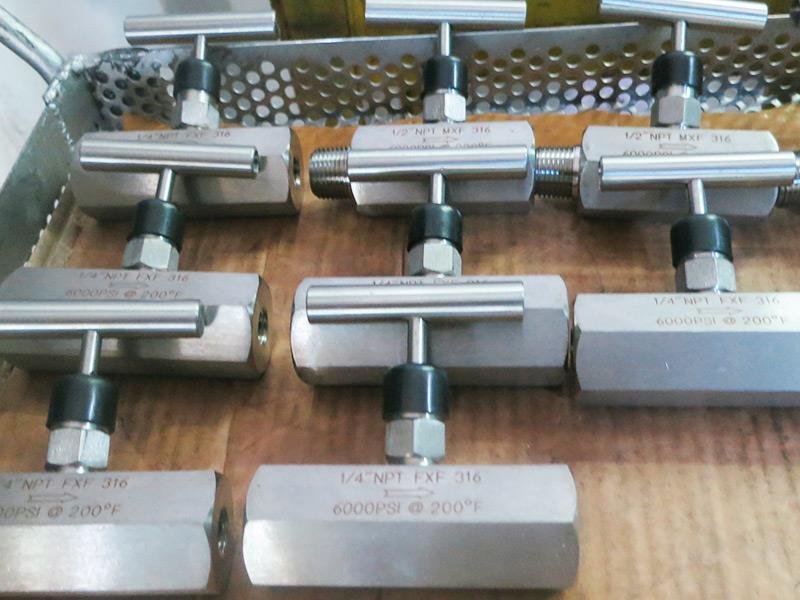

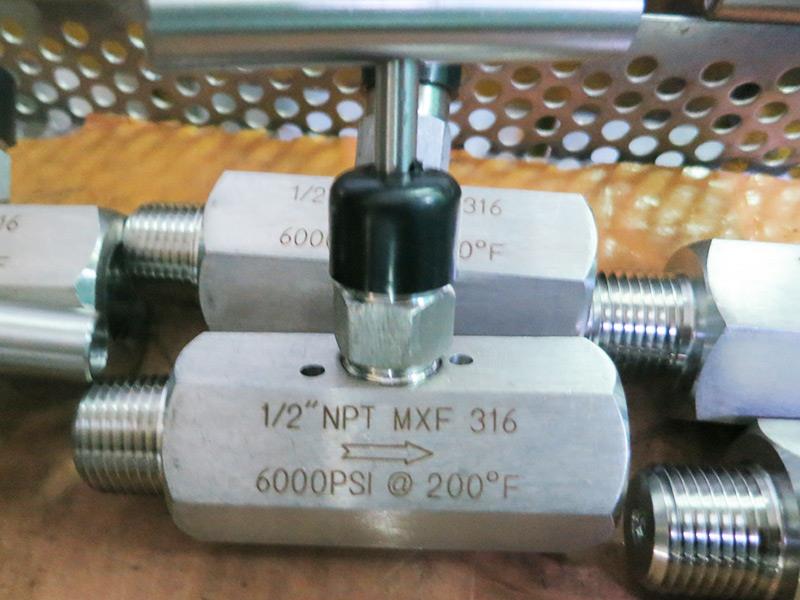

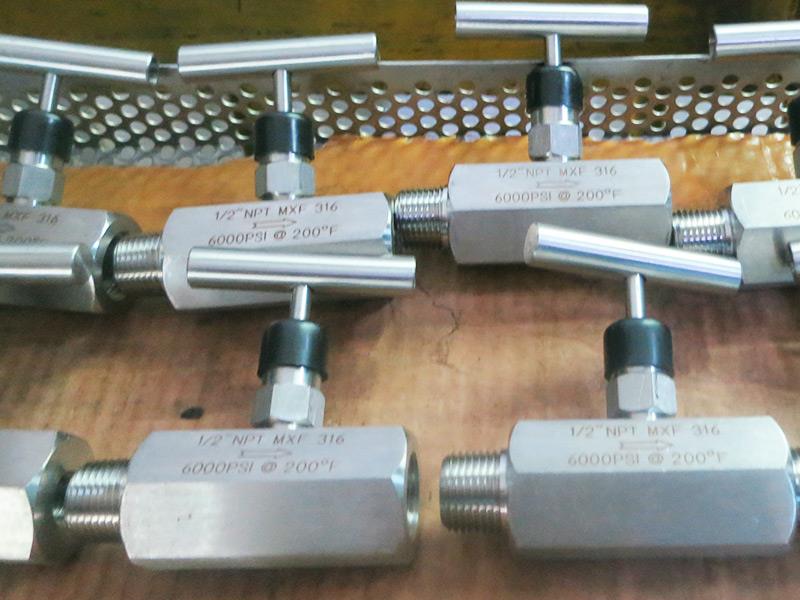

General needle valve

Nominal diameter: NPS 1/4"-2" , DN 6 - DN 50
Design Standard: ASME B16.34
Face-to-face: Manufacturer's standard
END Connection: ASME B16.11,ASME B1.20.1,ASME B16.25
Body Material: Carbon Steel , Alloy Steel, Stainless Steel ,Duplex Stainless Steel, Special Alloy.

This series of needle valves are used for flow cut-off and regulation. Hardened non-rotating spool structure, valve stem and spool through the chain connection, can reduce packing wear, ensure the reliable cut off flow and adjustment stability, longer service life.

Designing Features:

-Compact design

-Stainless steel stop pin

-Straight or angle patterns

-Body Styles: Welded or Threaded Ends

-Stem threads above packing, protected from system media

-Non-rotating, hardened needle design for leak-tight shutoff and long service life

-Safety back-seating needle design seals in fully open position

-Suitable for sour gas service; materials are selected in accordance with NACE MR0175/ISO 15156.

-Optional Multi-port or Instrument Manifold Constructions

If you have any enquiry about quotation or cooperation,please feel free to email us at or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
