General Plug Valve

Size: NPS 2”~ 24” , DN50 ~ DN600
Pressure: Class 150-1500 LB , PN 10 ~ 420
END Connection: Flange , BW
Design Standard: API 6D , API 599
Face to Face Dimension : ASME B16.10
Connection Dimensions: ASME B 16.5 , ASME B16.25
Body Material: Carbon Steel , Stainless Steel , Duplex Stainless Steel , Special Alloy
Operated Way: Hand wheel , Bevel Gear, Pneumatic, Electric,etc

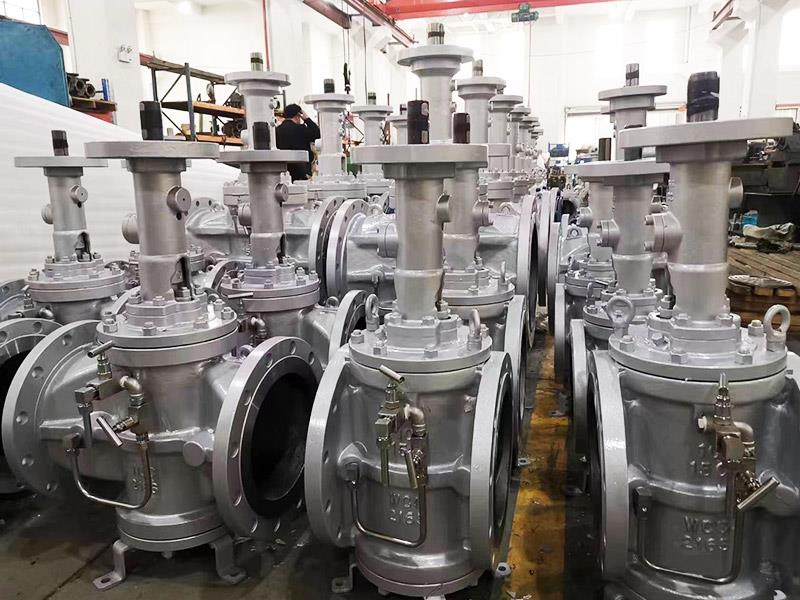

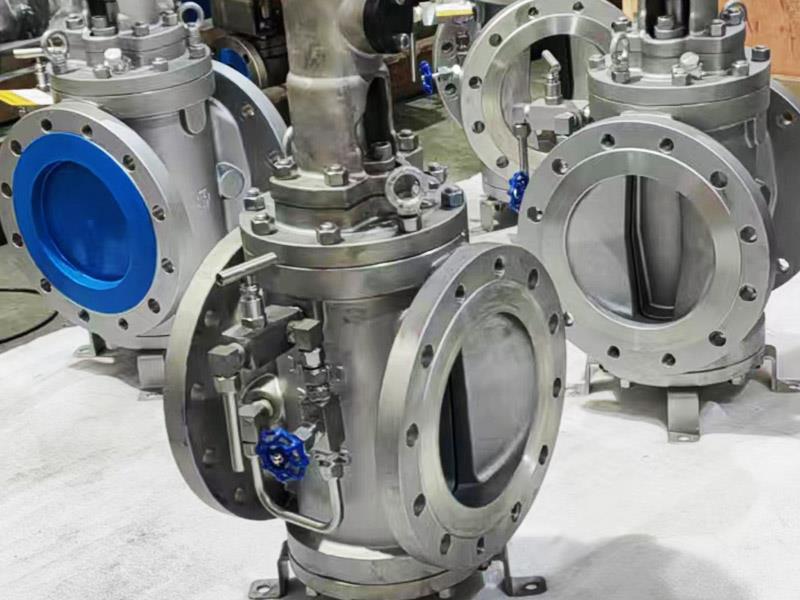

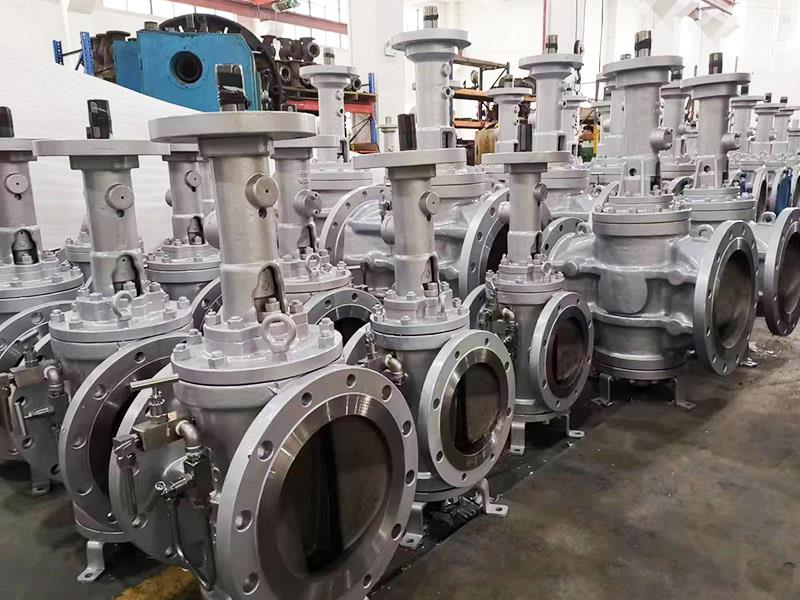

General Plug Valve ( also called Twin Seal Plug Valve , DBB plug valve )
Suitable for Industrial processes , Oil and gas and Aviation fueling
Such as: Pipeline pumping stations and terminals , Refinery bulk loading terminals , Crude oil and refined products metering and measurement systems

Design Feature:
- With two seating surfaces that in the closed position , provides a seal against pressure from both ends of the valve , with a means of venting/bleeding the cavity between the seating surfaces .
-Metal to metal sealing
-Packing seal structure , orbital plug valve spool in the valve switch process , both up and down to move and rotary movement , plus the particularity of the medium , in order to ensure the packing seal safe and reliable use of o-ring and packing combination seal
-No friction between sealing face
-Could be with DBB function
