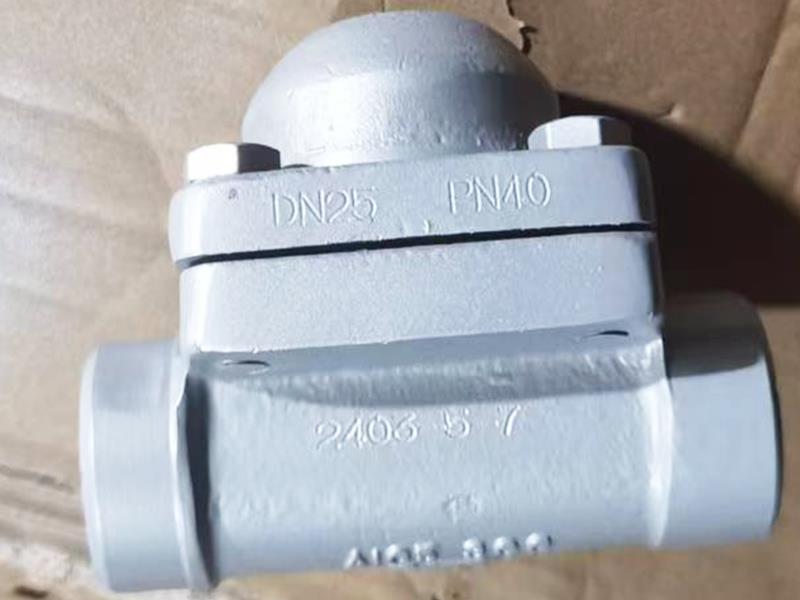

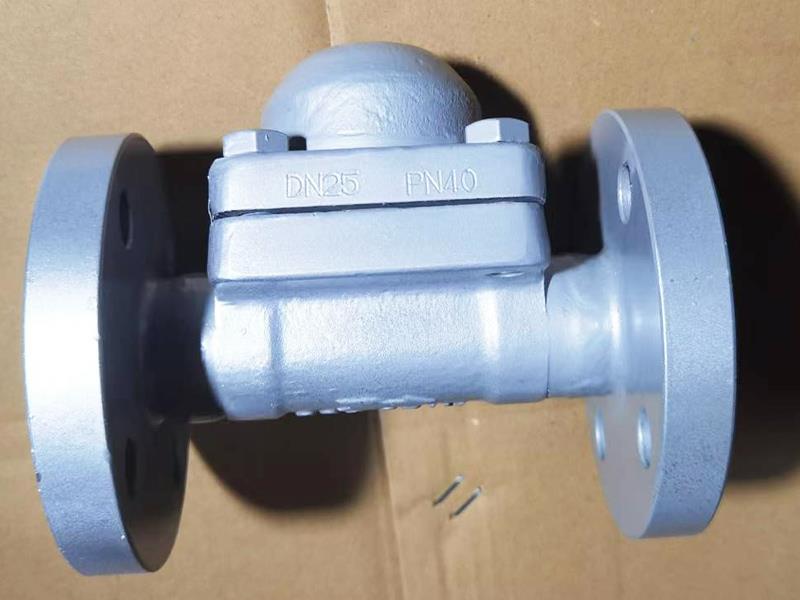

Bi-metallic Steam Trap

Nominal diameter: NPS 1/2"-4" , DN 15 - DN100
Design Standard: EN 26948
Face-to-face: EN26554
END Connection: ASME B16.5,EN 1092-1
Body Material: Carbon Steel , Alloy Steel,Stainless Steel

An extensive range of bimetallic steam traps, for applications ranging from standard steam lines to superheated steam.

Designing Features:

-Excellent for high pressure and superheated steam

-Freeze proof and resistant to water hammer

- Suitable for superheated steam with check valve installed at inlet

-In-line repairable

-Trap can be welded into line
