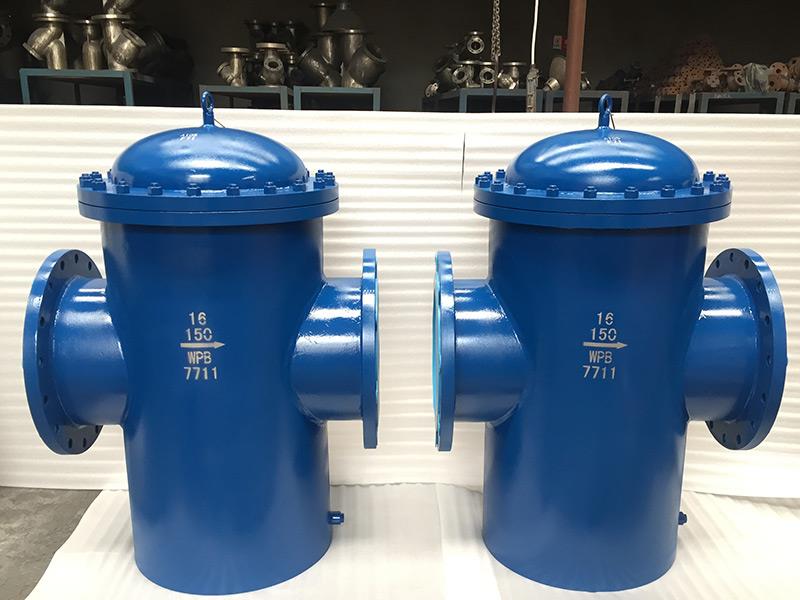

The basket type or pot type strainer is characterised by a vertically orientated chamber, typically larger than that of a Y-type strainer. Size for size, the pressure drop across a basket strainer is less than that across the Y-type as it has a greater free straining area, which makes the basket type strainer the preferred type for liquid applications. As the dirt holding capacity is also greater than in Y-type strainers, the basket type strainer is also used on larger diameter steam pipelines.
Basket type strainers can only be installed in horizontal pipelines, and for larger, heavier basket strainers, the base of the strainer needs to be supported.
Design Feature:
-Bolted Bonnet
-Casting body ,Welded body
-Drain plug
- Stainless steel filter screen.
-Flange End , BW ends ,
-Quick open cover
-Straight through flow design
-Low pressure loss
-Convoluted-basket design
-Hand removable basket
-Threaded drain
-Perforated or mesh stainless steel baskets standard
