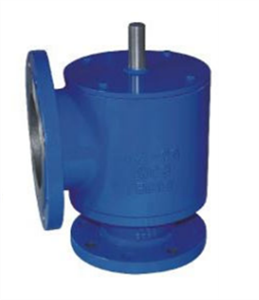

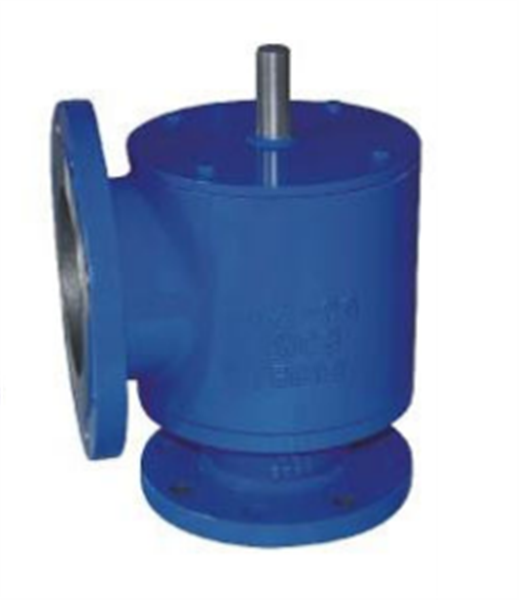

7130/8130 Pressure Relief Valve

The 7130/8130 Pressure Relief Valve are designed for use onatmospheric and low pressure storage tanks,vents to atmosphereor pipe away.The primary function is to protects tanks fromdamager deformation,and minimizes emissions to the environment,as well as loss of product due to evaporation.

Design Features:
◆Sizes available 2”~12”(DN50~DN300);
◆The 7130 series outlet ports is same to inlet;◆The 8130 series outlet ports is one pipe size larger than inlet flange to optimize flow capacity;
◆Pipe away;
◆Protective screens are provided at pressure and vacuum ports to prevent entrance of foreign matter;
◆The Flame Arrester、Inlet Pipe、Steam Jacket、Blowing Hole、Lining or Humidity Absorber are options to client;
◆Designed and tested according to API 2000;
◆The flanges are accordance with ANSI B16.5,or EN1092、JIS;
◆Available Materials:Aluminum、Carbon Steel、Stainless Steel、Special Materials on Application;
