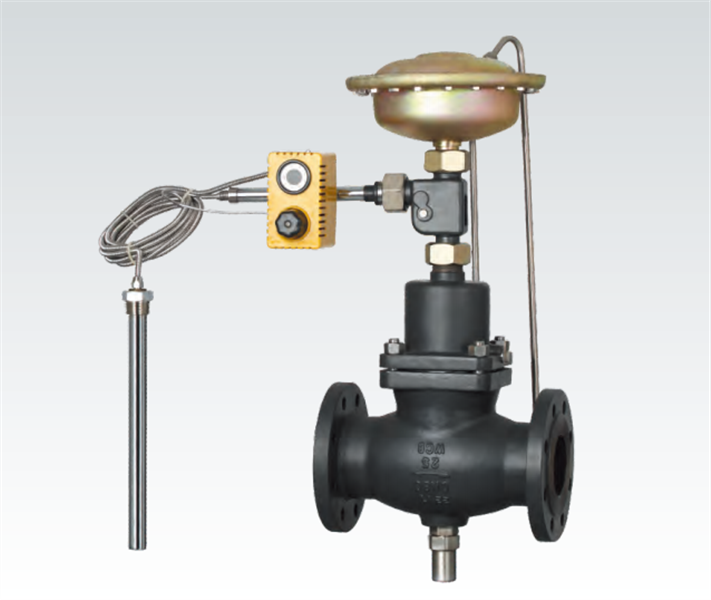

Self-operated Flow and Temperature Control Valve

The 30L01T01Y/30L01T01R、30L01T02Y/30L01Y02Rself-operated temperaturecontrol valve(cooling type) is composed ofthe control valve and a temperaturecontroller provided with fixed point control.It is suitable for controlling temperature ofnon-corrosive liquids, gases and steamsin various cooling systems.
When the temperature of the controlledmedium rises, the control valve is opened.
The main features are as follows:
1.It has the pressure balancing functionwith high sensitivity.
2.Low noise, reliable performance, free ofmaintenance
3.The standard modular design is adopted.
4.The flow is adjusted according to thestandard figure by the throttle valve,whichis convenient and fast.
5.It adopts the imported fixed pointcontroller,which has the over temperatureprotectionfunction with reliable quality.
6.Various combined controls can be carriedout through the assemblies.
